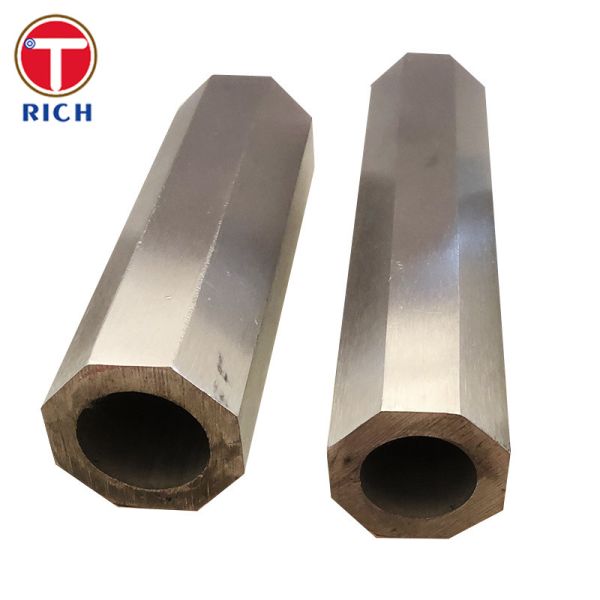

AISI 1045 Hexagon Steel Tube Cold Drawn Seamless Steel Tube For Agricultural Machines
Material Specification
AISI 1045 hexagon steel tubes are widely utilized in agricultural machinery due to their robust properties and efficient functionality. These tubes are crafted using the cold drawn seamless process, creating a product that meets the high-strength requirements of demanding applications while ensuring exceptional performance and durability.
Key Features
- High Strength and Toughness: AISI 1045 offers an excellent balance of strength and toughness, making it ideal for rugged agricultural environments.
- Good Machinability: Due to its medium carbon content, AISI 1045 provides good machinability, aiding in the ease of manufacturing.
- Wear Resistance: The material's wear resistance ensures longevity, even under continuous operation in harsh conditions.
- Versatility: These steel tubes can be used in various agricultural machinery applications, from framing to power transmission components.
Chemical Composition
The chemical composition of AISI 1045 steel is critical to its performance. The following table represents the typical composition:
| Element | Composition (%) |
| Carbon (C) | 0.43-0.50 |
| Manganese (Mn) | 0.60-0.90 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.050 |
| Silicon (Si) | 0.10-0.35 |
Mechanical Properties
AISI 1045 steel's mechanical properties underpin its suitability for agricultural machinery:
| Property | Value |
| Tensile Strength | 570 - 700 MPa |
| Yield Strength | ≥ 330 MPa |
| Elongation | 16% (in 50mm) |
| Reduction of Area | 40% |
| Brinell Hardness | 170 - 210 HB |
Similar Standards and Steel Grades
AISI 1045 is comparable to several international standards and steel grades, making it versatile and easy to source globally.
| Standard | Equivalent Grade |
| ASTM | A29/A29M |
| EN | C45 |
| GOST | 45 |
| JIS | S45C |
| GB | 45 |
Application
The AISI 1045 hexagon steel tubes are primarily used in various agricultural machinery components where strength and durability are critical. These applications include:
- Frames and Structures: Providing robust support for different machinery.
- Power Transmission: Shafting and axles that require strength and wear resistance.
- Hydraulic Components: Tubes play a crucial role in hydraulic systems where integrity and pressure tolerance are necessary.
- Mechanical Parts: Including gears and couplings due to their excellent machinability and mechanical properties.
TORICH Group, an one-stop service provider of raw materials engaged in raw material production, R&D and
trade, has 30+ years of experience in the market, exported to 56 +countries, and won good reputation and
credibility among domestic and foreign customers.
The company's production plant covers an area of over 10,000 square meters, with an annual production
capacity of 50,000 tons of materials and a comprehensive trading and warehousing capacity of 100,000 tons, which can satisfy customers' personalized needs for raw materials in terms of diversity and timeliness.
The group holds shares in more than ten domestic production entities, whose main products include
seamless steel pipes ( carbon steel and stainless steel), welded pipes ( carbon steel and stainless steel), pipe fittings ( carbon steel and stainless steel), titanium (titanium tubes, titanium rods, titanium cakes, titanium plates, etc.), aluminum (aluminum tubes, aluminum rods, aluminum die casting, aluminum casting, CNC machining), and CNC deep processing of metal materials such as tubes, rods, and casting parts.
Over the past 30 years, the company has been gradually developing new technologies and materials to meet
the growing needs of customers and various diversified needs, exporting to more than 56 countries and still
increasing the number of exporting countries, aiming to help customers to solve the demand for raw materials, and to facilitate one-stop purchasing for customers.
Q: Are you trading company or manufacturer ?
A: manufacturer,also can do trading.
Q: How long is your delivery time?
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
