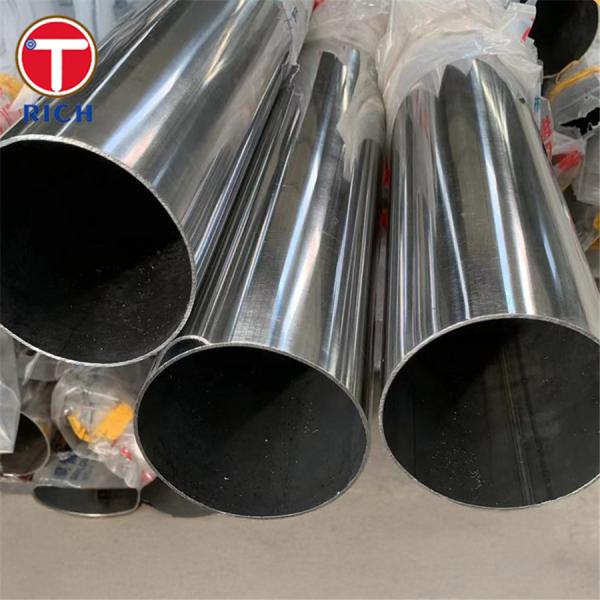

ASTM A270 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare

Name: ASTM A270 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare
Brand: TORICH
Price: 60000 USD

Quality ASTM A270 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare for sale

Brand Name : TORICH

Model Number : ASTM A270

Certification : API,CE,ISO,ISO9001-2008,ISO9001

Place of Origin : Zhejiang/China

MOQ : 1Ton

Price : 60000 Ton/Tons per Year

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 60000 Ton/Tons per Year

Delivery Time : 20-30days upon products

Packaging Details : In bundles or in wooden boxes.

Application : Structure Pipe,Hydraulic Pipe,Construction,Fluid Pipe,Oil Pipe

Outer diameter : 20 - 630 mm

Wall Thickness : 1-100mm

length : 6-12m According to customer requirements

Technique : Cold Drawn,Hot Rolled,Cold Rolled,ERW,Hot Rolled/Cold Drawn

Section shape : Round,Rectangular

Processing Service : Punching, Cutting, Bending, Decoiling

Contact Now

ASTM A270 TP304, TP316, 2205, 2507, 2003 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare

Material

ASTM A270 specifies the requirements for stainless steel sanitary tubing used primarily in the healthcare, pharmaceutical, and food industries. The tubing must be made from austenitic stainless steels known for corrosion resistance, durability, and cleanliness. Common materials under ASTM A270 include:

TP304 (Austenitic Stainless Steel)
TP316 (Austenitic Stainless Steel with Molybdenum)
2205 (Duplex Stainless Steel)
2507 (Super Duplex Stainless Steel)
2003 (High Manganese Austenitic Stainless Steel)

These materials ensure hygienic, corrosion-resistant, and mechanically robust tubes suitable for sterile and clean environments.

Specification

Specification	Description
Standard	ASTM A270
Type	Welded Austenitic Stainless Steel Tubing
Finish	Mill finish or Polished (typically 2B or sanitary finishes)
Dimensions	Various OD and wall thicknesses per ASTM A269 or ASTM A312 standards referenced
Testing	Hydrostatic, intergranular corrosion, weld quality, dimensional tolerances

Chemical Composition

Grade	C (max)	Mn (max)	Si (max)	P (max)	S (max)	Cr (min)	Ni (min)	Mo (min)	N (max)	Others
TP304	0.08%	2.00%	0.75%	0.045%	0.030%	18.00-20.00%	8.00-10.50%	-	0.10%	-
TP316	0.08%	2.00%	0.75%	0.045%	0.030%	16.00-18.00%	10.00-14.00%	2.00-3.00%	0.10%	-
2205	0.03%	2.00%	0.80%	0.030%	0.020%	22.00-23.00%	4.50-6.50%	3.00-3.50%	0.20%	N 0.10-0.20%, Cu max 0.50%
2507	0.03%	1.20%	0.80%	0.030%	0.020%	24.00-26.00%	6.00-8.00%	3.00-5.00%	0.20%	N 0.24-0.32%
2003	0.07%	5.00-8.00%	1.00%	0.040%	0.030%	16.50-18.50%	3.00-5.00%	-	0.20%	High Mn content for stability

Mechanical Properties

Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HRB)
TP304	520-750	≥205	≥30	≤90
TP316	520-750	≥205	≥30	≤90
2205	620-880	≥450	≥25	≤95
2507	750-900	≥550	≥25	≤95
2003	520-720	≥240	≥35	≤85

Key Features

Corrosion Resistance: Excellent resistance to corrosion in sanitary and aggressive environments.
Hygienic Surface: Smooth internal surfaces prevent bacterial contamination and are easy to clean.
Durability: High strength-to-weight ratio with excellent mechanical properties.
Weld Quality: Precision welding ensures leak-proof and strong joints.
Availability: Wide range of sizes and finishes to meet diverse healthcare and pharmaceutical requirements.
Compliance: Meets stringent sanitary and chemical standards required in healthcare equipment.

Application

Medical and healthcare processing equipment
Pharmaceutical manufacturing pipelines
Food and beverage sanitary processing systems
Biotechnological plant piping
Cleanroom and sterile environments requiring contamination control

Equivalent Grades

ASTM A270 Grade	Equivalent Standard	Equivalent Grade in Other Specs
TP304	UNS S30400 / EN 1.4301	AISI 304, DIN X5CrNi18-10
TP316	UNS S31600 / EN 1.4401	AISI 316, DIN X5CrNiMo17-12-2
2205	UNS S32205 / EN 1.4462	ASTM A789, DIN GX2CrNiMoN22-5-3
2507	UNS S32750 / EN 1.4410	ASTM A790, DIN GX2CrNiMoCuN25-6-3-2
2003	N/A (special high Mn austenitic)	Proprietary grade, similar to high Mn austenitic stainless steels

ASTM A270 Stainless Sanitary Tubing Welded Austenitic Stainless Steel Tube For Healthcare

Q: Are you trading company or manufacturer ?

A: manufacturer,also can do trading.

Q: How long is your delivery time?

A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples? is it free or extra ?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact with me.
